QS138 70H V3

Regular price$674.00
/
Shipping calculated at checkout.

  • Free Shipping in Continental USA

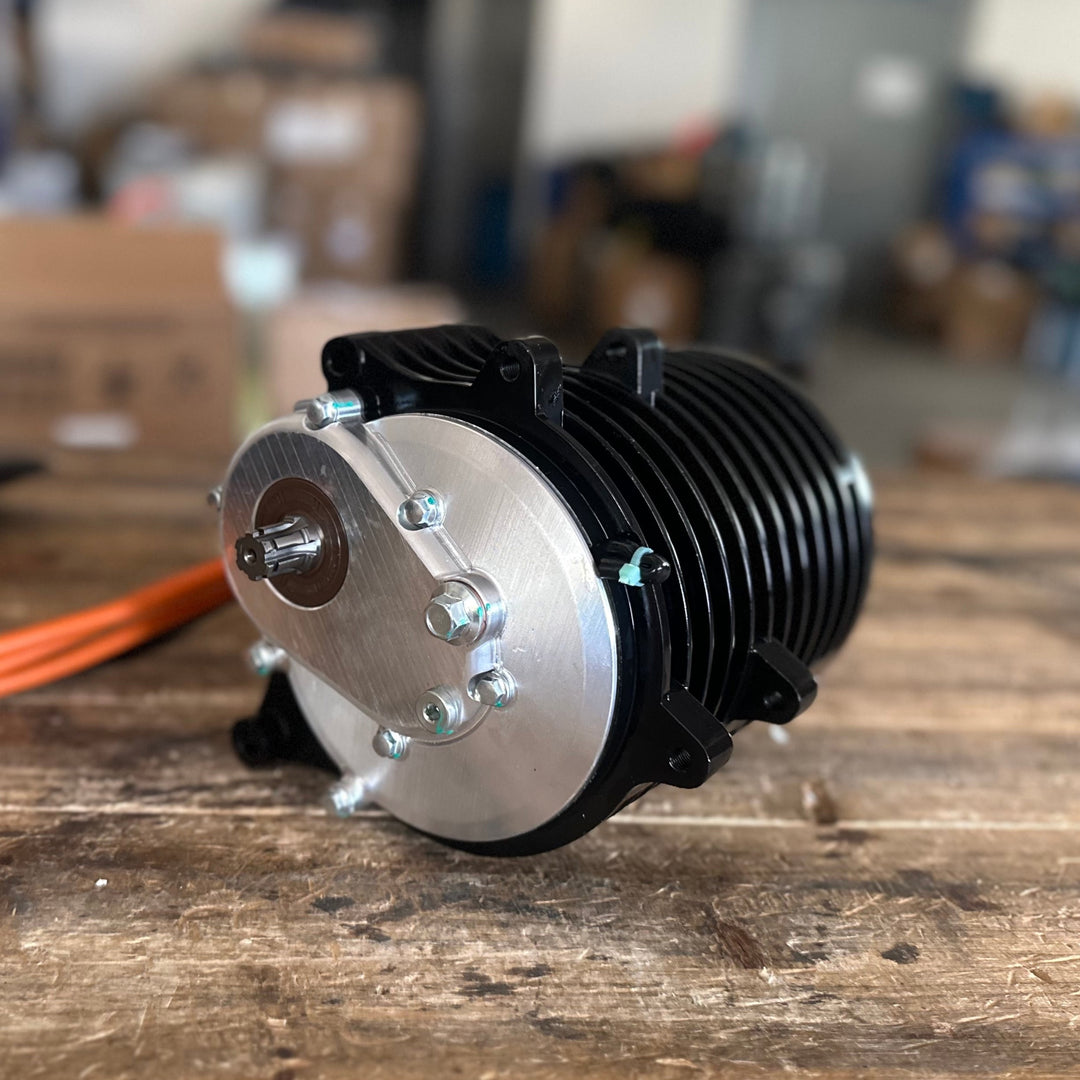

QS138 70H V3 72V IPM PMSM Mid Drive Motor with Internal 1:2.35 Gear Reduction & Spline Drive Output Shaft

DIRECT BOLT ON FOR PIT BIKE FRAMES! USUALLY NO MODIFICATIONS REQUIRED!

This is E&C's Newest Motor & Controller Kit! Utilizing everything great about the QS138 70h model and making it that much cooler! This Motor is the Most compact and powerful motor on the market that includes a built in gear reduction. This will allow for direct drive applications on larger wheel powersport vehicles with out the need for an oversized rear sprocket.

Key Features

  • Internal Gear Reduction 1:2.35
  • Light weight and small dimension compared to other motors of similar power outputs
  • V configured rotor design allows for higher RPM with flux weakening
  • High Torque suitable for high performace high load situations such as climbing and racing.
  • Comes with 15t 428 Sprocket

Motor Specifications

Weight: 27lbs

Diameter: 150mm (mounts not included)

Length: 234mm

Reduction: 1/2.35

Rated RPM: 4000

RPM with Flux: 6500+

Rated Power: 5.5kW continuous

E&C Findings: 25kW bursts

Lead Times

Current Lead Time: 1-3 Weeks
